Evacuation Plans

In the Revit template there are two evacuation plans, one portrait and one landscape both as A3.

The text is in English, so to change the text and layout follow the steps below.

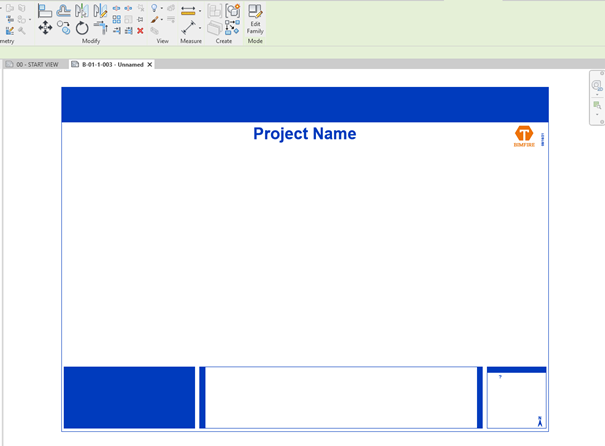

Edit the family by selecting it and in the ribbon choose Edit Family

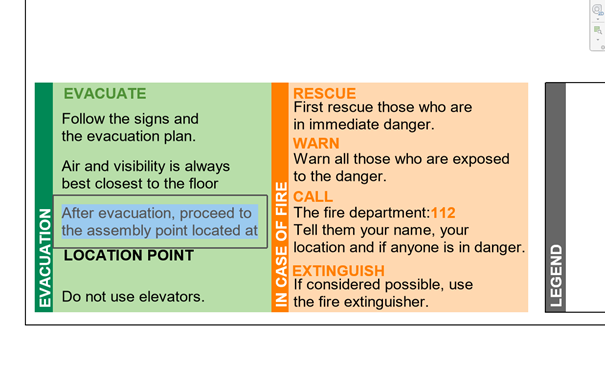

Change the text after liking, all are text fields.

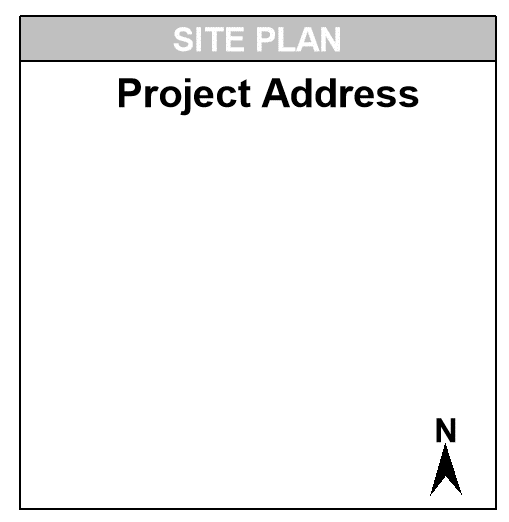

Add 2D plan from DWG or photo and add to the Site plan part

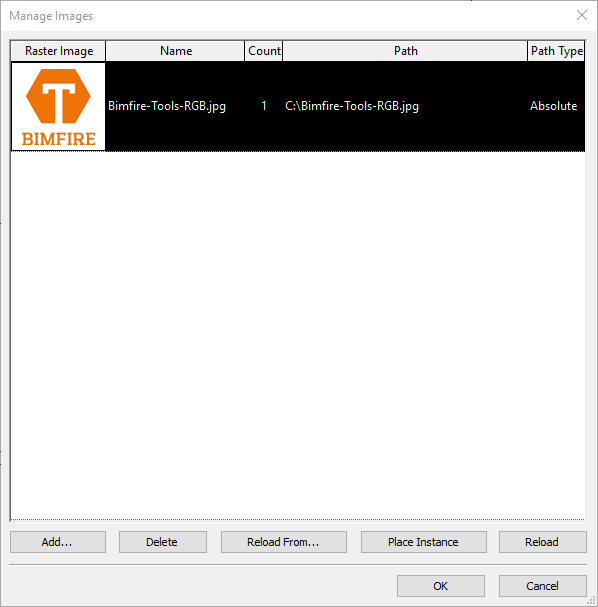

Change logo in the upper right corner. Go to Manage tab → Manage Images

Reload from new location, alternative delete and add new.

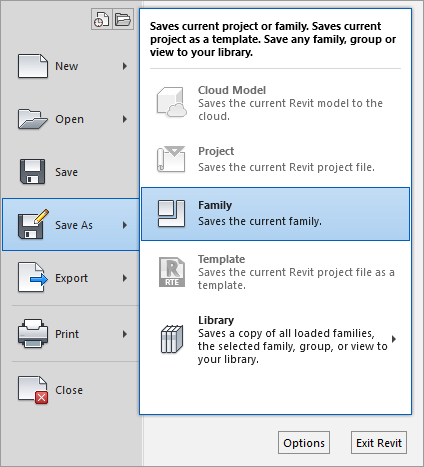

Save the titleblock and load into the project and the company template to make it easier for future projects.

Load the titleblock into the project and close

Manually create a legend or use the legend tool for each view and place in the legend area.
